2CH KVM Switch

2-port Dual-head KVM Switch For C5ISR Platforms

Main Features
▸ 2-Port KVM Switch
▸ USB2.0, DVI (single link & dual link), and Stereo Audio Switching
▸ Dual-Head Video Interface (two displays per channel)
▸ AC Power Inputs
▸ Military Connectors

Applications
▸ Fixed & Rotary Wing Aircraft
▸ Naval & Maritime Vessels
▸ Transportation
▸ Oil & Gas
▸ Industrial & Manufacturing

Login to Download Datasheet

SKU: KVM2CH Category:

Get a Quote

Name(Required)
Email(Required)

Overview

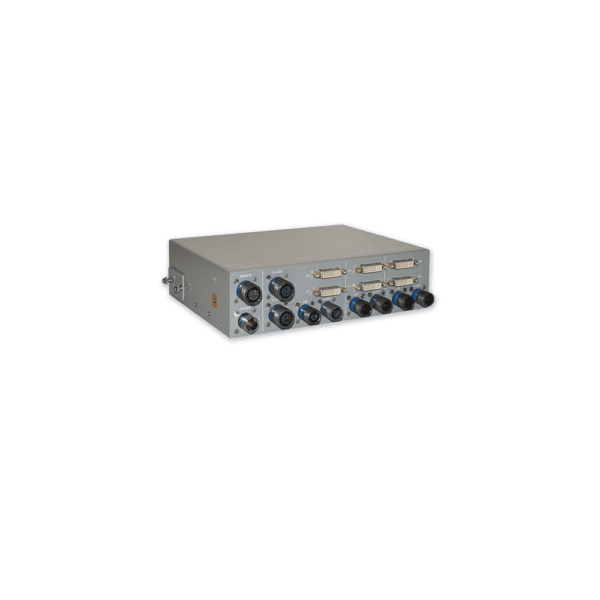

ArgonFDS offers rugged 2-Port, Dual-Head KVM Switch for Command & Control applications. ArgonFDS’ KVM provides reliable interfaces for USB keyboards and pointing devices, DVI video inputs, and audio in/out. This KVM Switch is tailored for use in dual display head environments such as those commonly found in C4ISR military console applications.



ArgonFDS’ KVM product provides full-featured standard KVM functionality and supports a wide variety of customized control input devices.

Specifications

Functional
Data Input Ports2xUSB2.0 (Keyboard/Pointer Composited), 4xDVI, 2x Stereo Audio In
Data Output Ports4xUSB2.0 (Keyboard, Pointer, 2x General Purpose USB), 2xDVI, 1xStereo Audio Out
Max Resolution2560x1600 @ 60Hz
Control Port1x 2-Channel Discrete Switch Control Input
Overall Unit
Dimensions (Typical)9.25" x 2.60" x 7.00"
Weight~3.0 lbs
Power Input115 VAC Input
Power Consumption25W Max
ConnectorsMIL Circular / DVI-I
EnclosureAluminum, Enclosed
Environmental
(Designed to meet, but is not limited to, the following selected specifications)
Operating Temp0oC to +60oC
Storage Temp-40oC to +70oC
ShockMIL-STD-901D, Grade A
VibrationMIL-STD-167-1, 33Hz
EMI/EMCDesigned to MIL-STD-461E
Altitude20k ft Operating, 40k ft Non-Operating
HumidityOperating & Storage : 95%, 25oC, Condensing
