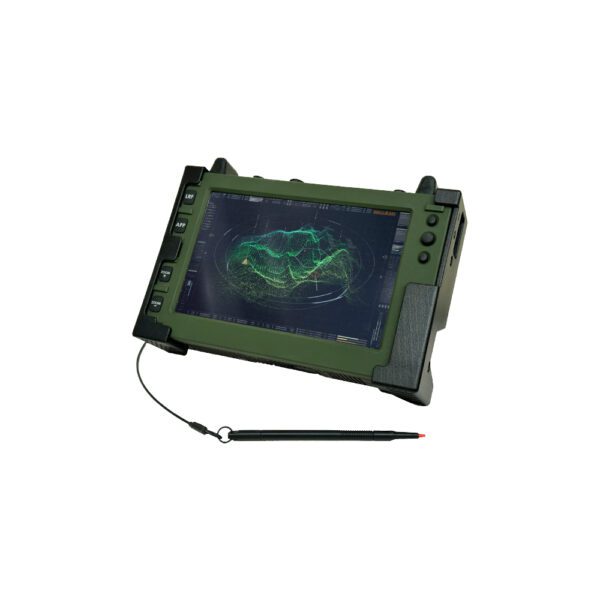

7 Inch Rugged Tablet AT70

Rugged Military Computer and Display System

Main Features
▸ Integrated 7.0” Display and Intel® i7 Processor
â–¸ Extremely Small Mechanical Outline and Bezel Width
â–¸ High Brightness/Sunlight Readable (Option)
â–¸ Low Weight
â–¸ Rugged, Analog Resistive Touch Screen (Option)
â–¸ Variety of Windows or Linux OS
â–¸ Custom User Controls and Connectors - Specify

Applications
â–¸ Fixed & Rotary Wing Aircraft
â–¸ Naval & Maritime Vessels
â–¸ Military Ground Vehicles
â–¸ Transportation
â–¸ Oil & Gas
â–¸ Operator Wearable

Login to Download Datasheet

SKU: AT70 Category: Tag:

Get a Quote

Name(Required)
Email(Required)

Overview

ArgonFDS offers a family of rugged military computing tablets designed for soldier-wearable applications and is also suited for airborne, land-based, and vehicle applications. These units have the smallest footprint on the market and are extremely lightweight and high-performance. The AT70 is a perfect fit for many handheld, dash-mount, or bulkhead-mount applications where size, weight, and power considerations are at a premium. The AT70 provides state-of-the-art low-power processing combined with excellent display performance. ArgonFDS stands ready to customize the unit to fit specific program needs.



Over the years, ArgonFDS has been developing and delivering compact units that can be used for mounted or dismounted operations. For dismounted, they can be configured with various controls and connectors and are suitable for interfacing with soldier-level batteries. The units use little power in normal operation and support touch screen and high brightness options. Various solutions are available for mounting to ensure that the team can be used for nearly any application.

Specifications

Display
Display7.0” Diagonal, TFT LCD w/ LED Backlight
Resolution800x480 or 1024x600
Brightness300+ Nits Standard, 750nits High Bright Option
Touch ScreenRuggedized, Analog Resistive (Option)
Overall Unit
Dimensions7.0”x 4.6”x 1.8”
Weight2.5+-lbs
Power Input18-36 VDC External Power or Internal Battery (Inquire)
Power Consumption10-12W Typical, Depending on Usage Profile
User ControlsOn/Off, Brightness Control, Day/Night, OSD, Attached Stylus, Others - Specify
ChassisMilled Aluminum, Enclosed
ConnectorsMil 38999, D Sub, Glenair Mighty Mouse®, Fischer, or Specify
Computer
Processor/RAMIntel® i7, Current Generation
Storage64 GB SSHD Standard, Larger as Option
OSWindows 10, or Specify
I/O2x USB, 1x RS232, 1x Ethernet, Others TBD by Application
WirelessWiFi 802.11 with Flush Mount Antenna (option)
GPSCommercial – Specify Antenna or Comes with Sealed SMA Connector (option)
OtherVideo Frame Grabber or Other I/O Cards Upon Request (option)
OtherVideo Frame Grabber or Other I/O Upon Request (Option)
Environmental
(Designed to meet, but is not limited to, the following selected specifications)
Operating Temp-10°C to +55°C (-40°C Option)
Storage Temp-40°C to +71°C
Shock40g, 11msec
Vibration2.25grms Random
EMI/EMCDesigned to MIL-STD-461
AltitudeUp to 40kft Operating, Non-Operating
Salt Fog, Sand/DustUnit is 100% Enclosed, Resistant to Salt Fog, Fungus
HumidityOperating & Storage – 95% @ 25°C, Non-condensing
