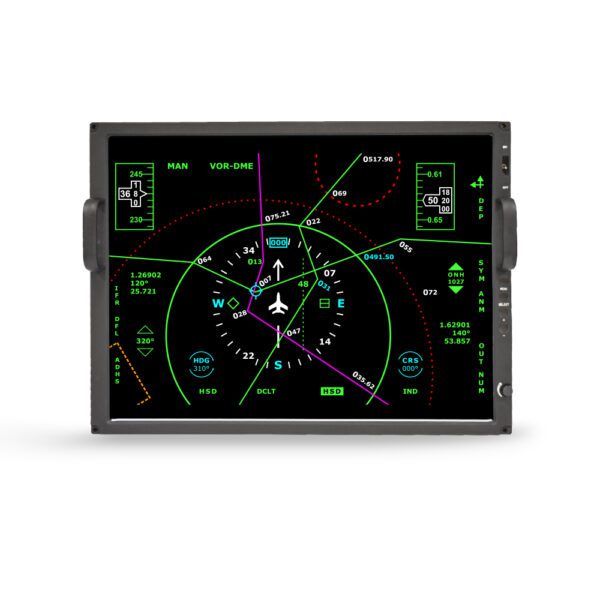

21 Inch Rugged Display ARD21
21.3”, UXGA Resolution, Rugged Display for C5ISR Platforms
| Main Features |
|---|
| ▸ Low Power Consumption – 65W at 400 Nits (Typical) |
| ▸ LED Backlighting System |
| ▸ 19” Rack Mount, 8U/9U High, 2.8” Depth |
| ▸ Optional Handles |
| ▸ Low Weight (15.7lbs) |
| ▸ 901D and Other Environmental/EMI Qualification Tests Performed |
| ▸ Fully Enclosed Unit; No Holes or Fans |
| Applications |
|---|
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
Login to Download Datasheet
Overview
ArgonFDS offers a 21.3” rugged display that is designed for Command & Control applications where maximum viewable surface area is needed in the smallest mounting possible. The ARD21’s extremely small bezel size, flexible mounting configurations, configurable I/O, and universal AC/DC power supply make it a valuable solution for many mission critical applications.
The ARD21’s 21.3” display is suitable for combat & tactical vehicles, mobile shelters, and close in naval spaces. ArgonFDS offers the customer a variety of standard options and is ready to customize to ensure that the product meets your exacting requirements. Moreover, ArgonFDS prides itself on working collaboratively with customers to precisely achieve their desired solution. Our company has a proven track record of providing high-quality, reliable, and long-lasting products, earning us a trusted reputation in aerospace & defense.
The ARD21 display as been designed to be FFF replacement of the obsolete 20.1” legacy rugged displays.
Specifications
| Optical | |
|---|---|
| Viewable Area | 21.3” Diagonal |
| Display Type | TFT LCD w/ LED Backlight |
| Resolution | 1600x1200 (UXGA) |
| Brightness | 400 nits Typical, 750 nits+ via High Bright Option |
| Touch Screen | Optional Ruggedized, Analog Resistive or Inquire for Others |
| Overall Unit | |
|---|---|
| Dimensions (Rack Mt) | 18.85” x 14.2” x 2.8” |
| Weight | 15.7 +-lbs |
| Power Input | 18 to 36VDC or 110/220VAC, 44 to 440 Hz Input |
| Power Consumption | 65W Typical |
| I/O | RGB/DVI/5 Wire BNC, RS-170, RS232/USB (For Touch Screen) |
| Connectors | MIL Circular, D Sub or Specify |
| Enclosure | Aluminum, Enclosed |
| User Controls | On/Off, OSD, Brightness |
| Environmental | |
|---|---|
| (Designed to meet, but is not limited to, the following selected specifications) | |
| Operating Temp | -10°C to +55°C (-40°C Optional) |
| Storage Temp | -40°C to +71°C |
| Shock | MIL-S-901D, MIL-STD-810, Method 516 |
| Vibration | MIL-STD-167A, MIL-STD-810, Method 514 |
| EMI/EMC | Tested to MIL-STD-461E |
| Altitude/Explosive Atmosphere | 40kft Operating/Non Op MIL-STD-810, Method 511 |
| Salt Fog, Sand/Dust | Resistant to Salt Fog, Unit is 100% Enclosed |
| Humidity | Operating –5% to 95% @ 25°C, Non-Condensing, MIL-STD-810 |
