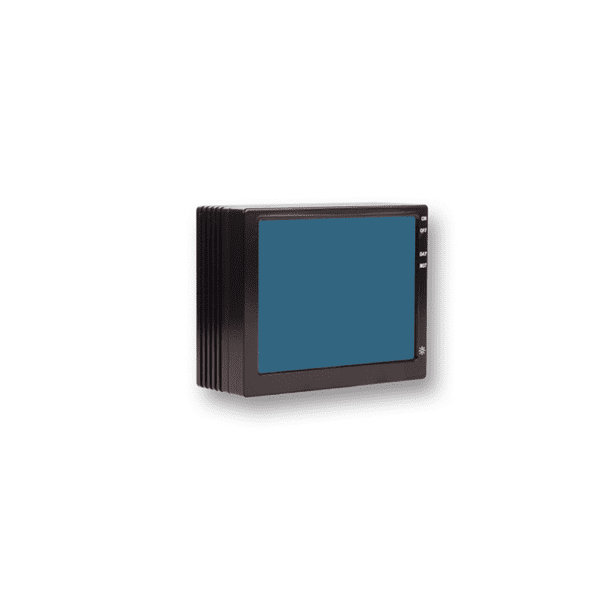

5 Inch Rugged Tablet AT50

Rugged Military Computer and Display System

Main Features
▸ Integrated 5.0” Display and Intel® Pentium N6415 Processor
â–¸ Extremely Small Mechanical Outline and Bezel Width
â–¸ High Brightness (Option)
â–¸ Low Weight
â–¸ Rugged, Analog Resistive Touch Screen (Option)
â–¸ Variety of Windows or Linux OS
â–¸ Custom User Controls and Connectors Specify

Applications
â–¸ Fixed & Rotary Wing Aircraft
â–¸ Naval & Maritime Vessels
â–¸ Military Ground Vehicles
â–¸ Transportation
â–¸ Oil & Gas

Login to Download Datasheet

SKU: AT50 Category: Tag:

Get a Quote

Name(Required)
Email(Required)

Overview

ArgonFDS offers a family of rugged military computing products which are designed for airborne, landbased, vehicle or handheld applications. These units have the smallest footprint on the market and are extremely lightweight and low power. The AT50 is a perfect fit for many hand held, dash-mount or bulkhead mount applications where size, weight, and power considerations are at a premium. The AT50 provides state-of- the-art low power processing combined with excellent display performance. ArgonFDS stands ready to customize the unit to fit specific program needs.



Over the years ArgonFDS has been developing and delivering compact units that can be used for mounted or dismounted operations. For dismounted, they can be configured with a variety of controls and connectors, and are suitable for interfacing to soldier level batteries. The units use little power in normal operation, and support touch screen and high brightness options. For mounting, a variety of helicoil inserts are available to ensure that the unit can be used for nearly any application.

Specifications

Display
Display5.0” Diagonal, TFT LCD w/ LED Backlight
Resolution640x480
Brightness300 Nits Typical, 800 Nits High Bright Option
Touch ScreenRuggedized, Analog Resistive (Option)
Overall Unit
Dimensions4.86”x 3.86”x 1.8”
Weight2.5+-lbs
Power Input18-36 VDC External Power
Power Consumption10 to 12W Typical, Depending on Usage Profile
User ControlsOn/Off, Brightness Control, OSO, Day/Night, Others - Specify
ChassisAluminum, Enclosed
ConnectorsMil 38999, D Sub, Glenair Mighty Mouse®, or Specify
Computer
Processor/RAMIntel® Pentium N6415, 4 Cores, 4 Threads with UHD Graphics, 4GB RAM or newer
Storage64GB SSHD Standard, or Specify
OSWindows 10, Linux
I/OUSB, RS-232, Ethernet, Others TBD by Application
WirelessWiFi 802.11 with Flush Mount Antenna (Option)
GPSCommercial – Specify Antenna or Comes with Sealed SMA Connector (Option)
OtherVideo Frame Grabber or Other I/O Upon Request (Option)
Environmental
(Designed to meet, but is not limited to, the following selected specifications)
Operating Temp-10oC to +55oC (-40oC Option)
Storage Temp-40oC to +71oC
Shock40g, 11msec
Vibration2.25grms Random
EMI/EMCDesigned to MIL-STD-461
AltitudeUp to 40kft Operating, Non-Operating
Salt Fog, Sand/DustUnit is 100% Enclosed, Resistant to Salt Fog, Fungus
HumidityOperating & Storage – 95% @ 25°C, Non-condensing
