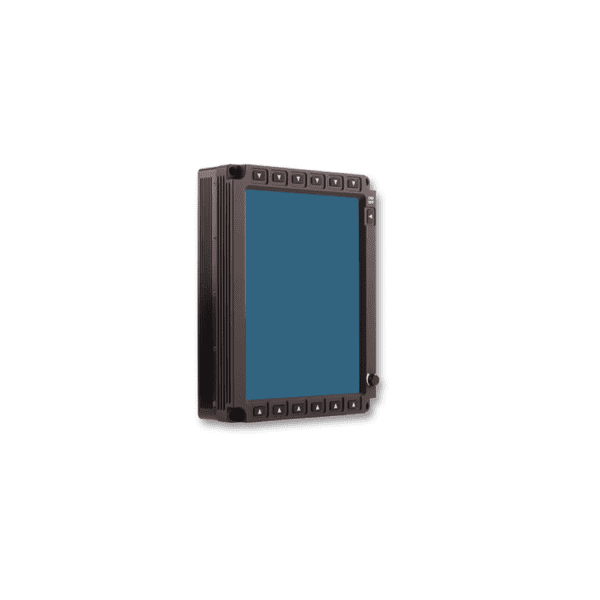

10 Inch Rugged Tablet AT104

10.4” Small Footprint Tablet for C5ISR Platforms

Main Features
▸ Small Mechanical Outline and Bezel Width
▸ Low Weight
▸ i7 Processor (Current Generation)
▸ Analog Resistive or Capacitive Touch Screen
▸ Programmable Bezel Buttons (Option)
▸ Customizable Analog/Digital I/O, Optional CANBus
▸ High Brightness
▸ Fully Enclosed Unit

Applications
▸ Fixed & Rotary Wing Aircraft
▸ Naval & Maritime Vessels
▸ Military Ground Vehicles
▸ Transportation
▸ Oil & Gas

Login to Download Datasheet

SKU: AT104 Category: Tag:

Get a Quote

Name(Required)
Email(Required)

Overview

ArgonFDS offers a 10.4” rugged display with an embedded computer, or Tablet, that is particularly suitable for Command & Control applications where space is at a premium such as in combat & tactical vehicles, mobile shelters, and close-in naval spaces. The AT104’s small bezel size, flexible mounting configurations, powerful processors (customer can choose from a variety of Intel base processors) configurable I/O, and universal AC/DC power supply make it a valuable solution for many mission critical applications.



The AT104 is a full-featured combat vehicle ready unit with a wide variety of standard options. Argon is prepared to customize the display for your program and platform needs to ensure that the product meets your exacting requirements.

Specifications

Display
LCD10.4” Diagonal, TFT 16M Colors, Wide Viewing Angles
Resolution640 x 480, 800 x 600, 1024 x 768 (XGA), Portrait or Landscape Mode
BrightnessStandard 300 nits, High Brightness up to 800 nits
Touch ScreenRuggedized, Analog Resistive or Capacitive
OtherNVG Compatibility (Option)
Overall Unit
Dimensions10.45” x 8.00” x 2.4”
Weight6.5+- lbs Typical
Power Input9 to 36 VDC or 110/220 VAC
Power Consumption30 - 65W Watts Typical (Depends on usage profile)
ChassisConduction/Convection Cooled, Fully Enclosed, Aluminum Chassis
Other User ControlsCustomer can Select Buttons/Switches and Locations per Application Needs
Computer
Processor/RAMIntel® i7 Current Version / 64GB RAM
Storage256 GB SSD Standard
OSWindows 10 or Specify
I/OEthernet, RS-232, USB, CANBus, VGA Output, Specify Others
Sound/MicrophoneOnboard Sound Card, Speaker/Microphone Jacks (Option)
Expansion OptionsRemovable HD, Customer Defined I/O (Option)
Environmental
The Following are some Sample Specifications:
Operating Temp-10oC to +55oC, -40oC Option
Storage Temp-40oC to +71oC
Shock40g, 11msec
VibrationMIL-STD-810, Method 514
EMI/EMCMIL-STD-461E
Altitude40k ft Operating, 40k ft Non-Operating
Humidity, Salt Fog, Sand/DustUnit is 100% enclosed, Resistant to Salt Fog, Fungus, MIL-STD-810
HumidityOperating & Storage – 95% @ 40°C, Non-Condensing
