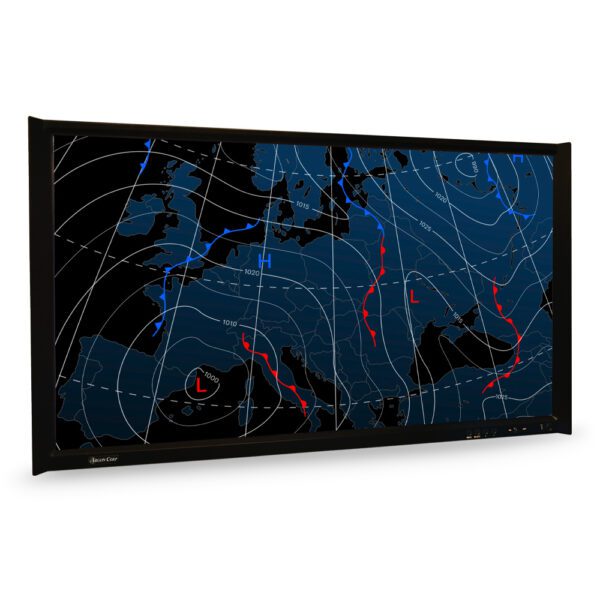

43 Inch Rugged Display ARD43
43” Rugged Display for C5ISR Platforms
| Main Features |
|---|
| ▸ UHD Resolution – 3840x2160 Resolution |
| ▸ Low Power Consumption – 95W at 300 Nits (Typical) |
| ▸ LED Backlighting System |
| ▸ Extremely Wide Viewing Angles |
| ▸ Flexible configurations – Analog RGB/DVI/Display Port/Video/RS-232/Other |
| ▸ Low Weight (<50lbs) |
| ▸ Fully Enclosed Unit; No Holes or Fans |
| Applications |
|---|
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
Login to Download Datasheet
Overview
ArgonFDS offers a 43” UHD rugged display that is designed for Command & Control applications where a large viewable surface area is needed. The ARD43’s extremely small bezel size, flexible mounting configurations, configurable I/O, and universal AC/DC power supply make it a valuable solution for many mission critical applications.
The ARD43 display is suitable for naval combat information rooms, ship bridge applications, airborne applications, mobile shelters and command centers. ArgonFDS offers the customer a variety of standard options and is ready to customize to ensure that the product meets your exacting requirements.
Moreover, ArgonFDS prides itself on working collaboratively with customers to precisely achieve their desired solution. Our company has a proven track record of providing high- quality, reliable, and long-lasting products, earning us a trusted reputation in aerospace & defense.
The ARD43 has been Mil S 901D tested by our surface ship customers.
Specifications
| Optical | |
|---|---|
| Viewable Area | 43” (UHD) |
| Display Type | TFT LCD w/ LED Backlight |
| Resolution | 3840x2160 |
| Brightness | 300 Nits Standard, 750 nits+ via High Bright Option |
| Touch Screen | Inquire |
| Overall Unit | |
|---|---|
| Dimensions (Rack Mt) | 39.29” (w) x 23.20” (h) x 4.2” (d) |
| Weight | +-47 lbs |
| Power Input | 18 to 36VDC or 110/220VAC 44 to 440Hz Input |
| Power Consumption | 75W Typical |
| Video Inputs | RGB – DVI – HDMI – Display Port (Inquire) |
| Com Ports | RS232/USB |
| Connectors | MIL Circular, D Sub or Specify |
| Enclosure | Aluminum, Enclosed |
| User Controls | On/Off, OSD, Brightness, Bezel Buttons (Option) |
| Environmental | |
|---|---|
| (Designed to meet, but is not limited to, the following selected specifications) | |
| Operating Temp | -10oC to +55oC |
| Storage Temp | -40oC to +71oC |
| Shock | Functional: 15g, 11msec MIL-STD-810F, method 516.5 MIL-S_901D Grade B, Type 1, Class A Operating |
| Vibration | MIL-STD-167A |
| EMI/EMC | MIL-STD-461 |
| Altitude/Explosive Atmosphere | 20kft Operating, MIL-STD-810, Method 511/50kft Non-Operating |
| Salt Fog, Sand/Dust | Resistant to Salt Fog, Unit is 100% Enclosed |
| Humidity | Operating –5% to 95% @ 25°C, Non-Condensing, MIL-STD-810 |
