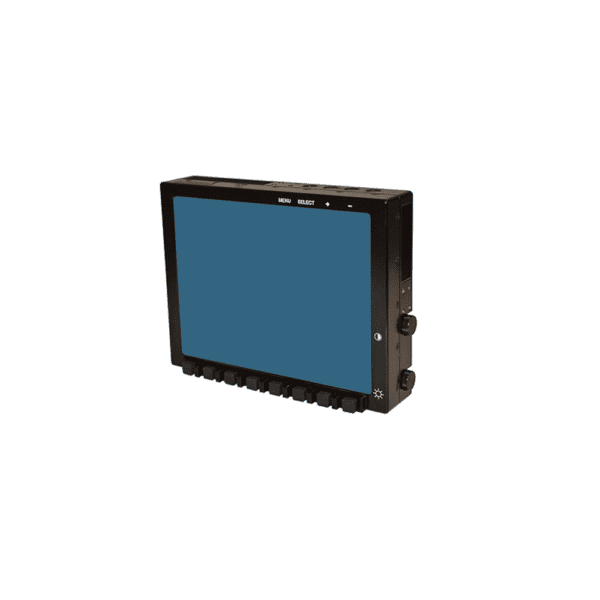

8 Inch Small Rugged Display ASD84
Rugged Military Displays for Mounted or Dismounted Operations
| Main Features |
|---|
| ▸ Extremely Small Mechanical Outline |
| ▸ Low Weight/Power |
| ▸ Day Light Readability (Option) |
| ▸ Ruggedized Touch Screen (Option) |
| ▸ Customizable Connector(s) and Connector Location(s) |
| ▸ Customizable User Features/Controls |
| ▸ Wide Format Available |
| Applications |
|---|
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
Login to Download Datasheet
Overview
ArgonFDS offers a family of small rugged military displays which are designed for airborne, land based vehicle or handheld applications. These displays have the smallest footprints on the market, are extremely lightweight and consume low power. The ASD84 provides excellent display performance where size, weight, and power are at a premium, and ArgonFDS stands ready to customize the unit to fit specific program needs.
Over the years ArgonFDS has been developing and delivering compact displays that can be used for mounted or dismounted operations. For dismounted, displays can be configured with a variety of controls and connectors and are suitable for interfacing to the soldier level computer and/or batteries. The displays use little power in normal operation. A touch screen and high brightness option are available. For mounting, a variety of Helicoil inserts are available to ensure that the unit can be mounted for nearly any application.
ArgonFDS has several existing configurations to choose from or the display can be mechanically configured to meet your exact program requirements.
Specifications
| Optical | |
|---|---|
| Viewable Area | 8.4” Diagonal |
| Display Type | TFT LCD w/ LED Backlight |
| Resolution | 640x480 (VGA) or 800x600(SVGA) or 1024x768(XGA) |
| Brightness | 400 nits Typical, 750 nits with High Bright Option |
| Touch Screen | Ruggedized, Analog Resistive |
| Overall Unit | |
|---|---|
| Dimensions (Typical) | 8.1” x 6.7” x 1.5” |
| Weight | 3.0 +-lbs |
| Power Input | 9 to 36VDC |
| Power Consumption | 15W Typical, Depending on Usage Profile |
| I/O | RGB/DVI, Power, USB/232 (For touch option) |
| Connectors | Military Circular or Specify |
| Enclosure | Aluminum, Enclosed |
| User Controls | On/Off, Day/Night, OSD, Brightness, Bezel Buttons, Attached Stylus, others Specify |
| Other | Customizations and Adaptations Available on Request |
| OS | Windows 10 or Specify |
| I/O | USB, RS232, GigE, VGA Out, Specify Others |
| Wireless | WiFi 802.11x with Flush Mount Antenna (Option) |
| Other | Video Frame Grabber or Other I/O Upon Request (Option) |
| Environmental | |
|---|---|
| (Designed to meet, but is not limited to, the following selected specifications) | |
| Operating Temp | -10°C to +55°C (-40°C optional) |
| Storage Temp | -40°C to +70°C |
| Shock | 40g, 11msec |
| Vibration | 2.25grms Random |
| EMI/EMC | Designed to MIL-STD-461 |
| Altitude | Up to 40kft Operating, Non-Operating |
| Salt Fog, Sand/Dust | Resistant to Salt Fog, Unit is 100% Enclosed |
| Humidity | Operating & Storage – 95% @ 25°C, Non-Condensing |
