ARK100 Rugged Keyboard
Rugged Computer Peripherals When You Need Them
| Main Features |
|---|
| ▸ Extremely Small Mechanical Outline |
| ▸ Low Weight |
| ▸ Rubber Sealed, Backlit Keys |
| ▸ USB, RS-232 or PS/2 Communications |
| ▸ Pigtail or Military Connectors |
| ▸ Hinged Mounting Options |
| Applications |
|---|
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
Login to Download Datasheet
Overview
ArgonFDS has developed small, lightweight and compact family of keyboards for rugged military environments. Our keyboards are resistant to penetrating materials such as sand, dust and liquids. A variety of keyboards can be selected for different languages, backlighting schemes, key force and travel.

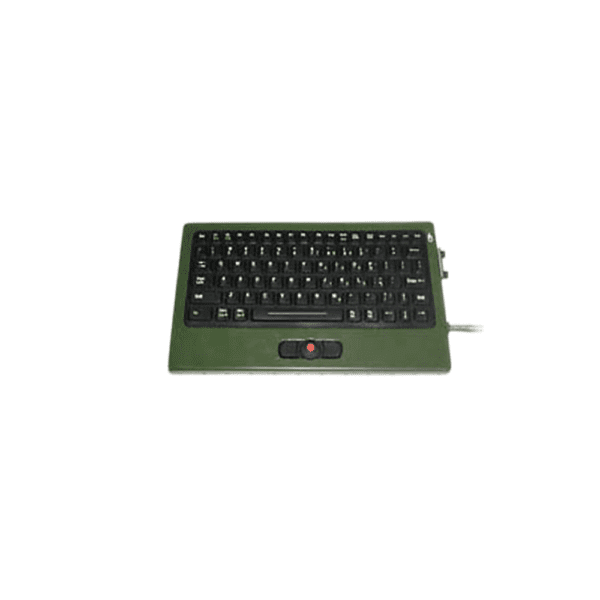

The enclosure is made of bent, welded aluminum for the top assembly and a milled aluminum plate for a secure bottom plate that provides a solid base that is resistant to bending motions and can be bolted down. Pictured (right) is a compact version for table mount or stow away. The customer may select a variety of indicators or buttons depending on the application.
We provide an optional sealed pointing device, or the customer can specify.
Specifications
| Overall Unit | |
|---|---|
| Dimensions | 12.0” x 7.0 ”x 0.75” Typical (Can be customized) |
| Weight | ~2.8 lbs |
| Power Consumption | 1W Typical |
| Keyboard | Rubber over Buttons, Sealed, Select Language |
| Interface | USB, RS-232or PS2 |
| Keys | Backlit and Dimmable |
| Actuation Force | 200 Grams |
| Key Travel | 0.055 Inches |
| Key Lifetime | 10 Million Cycles |
| Pointing Device | Sealed Micro Joy Stick |
| Other | Customizations And Adaptations Available On Request |
| Environmental | |
|---|---|
| (Designed to meet, but is not limited to, the following selected specifications) | |
| Operating Temp | -40°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Shock | 40g, 11msec |
| Vibration | 2.25grms Random |
| EMI/EMC | MIL-STD-461E |
| Altitude | 20k ft Operating, 40k ft Non-Operating |
| Salt Fog, Sand/Dust | Resistant to Salt Fog, Unit is 100% Enclosed |
| Humidity | Operating & Storage – 95% @ 40°C, Non-Condensing |
