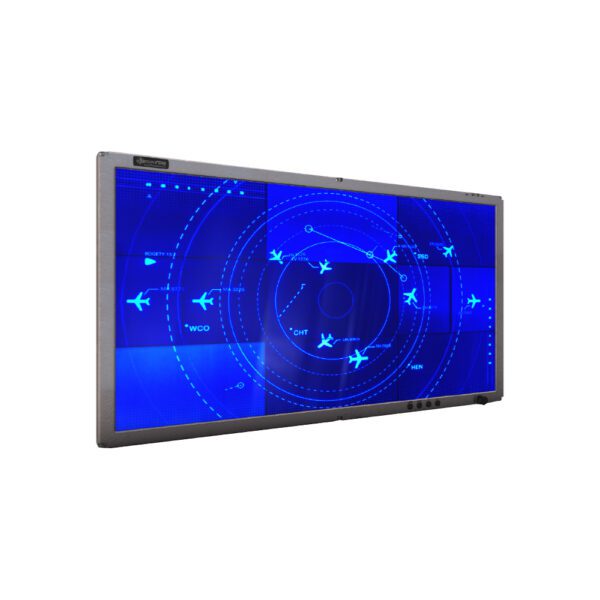

32 Inch Rugged Display ARD32
31.5”, Full HD Resolution, Thin and Lightweight Display for C5ISR Platforms
| Main Features |
|---|
| ▸ Low Power Consumption – 80W at 300 Nits (Typical) |
| ▸ LED Backlighting System |
| ▸ Full High Definition, 1920x1080 |
| ▸ Flexible Input configurations |
| ▸ Low Weight (<20lbs) |
| ▸ Fully Enclosed Unit; No Holes or Fans |
| Applications |
|---|
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
| ▸ Industrial & Manufacturing |
Login to Download Datasheet
Overview
ArgonFDS offers a 31.5” rugged display that is designed for Command & Control applications where a large viewable surface area is needed. The ARD32’s extremely small bezel size, flexible mounting configurations, configurable I/O, and universal AC/DC power supply make it a valuable solution for many mission critical applications.
The ARD32 display is suitable for combat & tactical vehicles, mobile shelters, and close in naval spaces. ArgonFDS offers the customer a variety of standard options and is ready to customize to ensure that the product meets your exacting requirements.
Moreover, ArgonFDS prides itself on working collaboratively with customers to precisely achieve their desired solution. Our company has a proven track record of providing high- quality, reliable, and long-lasting products, earning us a trusted reputation in aerospace & defense.
Specifications
| Optical | |
|---|---|
| Viewable Area | 31.5” Diagonal |
| Display Type | TFT LCD w/ LED Backlight |
| Resolution | 1920x1080 (Full HD) |
| Brightness | 300 nits Typical, 750 nits+ via High Bright Option |
| Touch Screen | Optional Ruggedized, Glass on Glass, Analog Resistive |
| Overall Unit | |
|---|---|
| Dimensions (Rack Mt) | 29.0” x 17.65” x 2.75” |
| Weight | < 20 lbs |
| Power Input | 18 to 36VDC or 110/220VAC Input |
| Power Consumption | 80W Typical |
| Video Inputs | RGB – DVI – HDMI – HD-SDI – S-Video – Composite (Configurable) |
| Com Ports | RS232/USB (For Touch Screen or Bezel Buttons) |
| Connectors | MIL Circular, Sub D or Specify |
| Enclosure | Aluminum, Enclosed |
| User Controls | On/Off, OSD, Brightness, Bezel Buttons (Option) |
| Environmental | |
|---|---|
| (Designed to meet, but is not limited to, the following selected specifications) | |
| Operating Temp | -10°C to +55°C (-40°C optional) |
| Storage Temp | -40°C to +71°C |
| Shock | MIL-STD-901D, MIL-STD-810, Method 516 |
| Vibration | MIL-STD-167A, MIL-STD-810, Method 514 |
| EMI/EMC | Tested to MIL-STD-461E |
| Altitude/Explosive Atmosphere | 20kft Operating,40kft/MI-STD-810, Method 511, Non-Operating |
| Salt Fog, Sand/Dust | Resistant to Salt Fog, Unit is 100% Enclosed |
| Humidity | Operating –5% to 95% @ 25°C, Non-Condensing, MIL-STD-810 |
