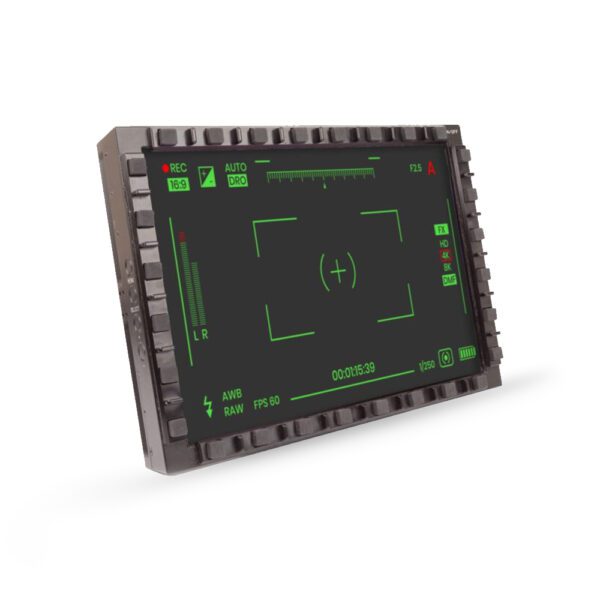

12 Inch Rugged Display ARD12
12″ Rugged Display for C5ISR Platforms
| Main Features |
|---|
| ▸ Extremely Small Bezel Dimensions |
| ▸ Low Weight |
| ▸ Customer Defined Bezel Buttons |
| ▸ NVG Compatibility (Option) |
| ▸ High Brightness (Option) |
| ▸ Military Connectors |
| ▸ Wide Range for Environmental/EMI |
| ▸ Fully Enclosed Unit (IP66), Convection Cooling |
| ▸ Rugged AR Touch Screen (Option) |
| Applications |
|---|
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
Login to Download Datasheet
Overview
ArgonFDS offers a 12.1” rugged display that is particularly suitable for Command & Control applications where space is at a premium such as in combat & tactical vehicles, mobile shelters, and close-in naval spaces. The ARD12’s small bezel size, flexible mounting configurations, configurable I/O, and universal AC/DC power supply make it a valuable solution for many mission critical applications.
The ARD12 is a full-featured combat ready display with a wide variety of standard options, and ArgonFDS is prepared to customize the display to ensure that the product meets your exacting requirements. Moreover, ArgonFDS prides itself on working collaboratively with customers to precisely achieve their desired solution. Our company has a proven track record of providing high-quality, reliable, and long-lasting products, earning us a trusted reputation in aerospace & defense.
Specifications
| Optical | |
|---|---|
| Viewable Area | 12.1” Diagonal |
| Display Type | TFT LCD w/ LED Backlight |
| Resolution | 800x600 or 1024x768, Widescreen Inquire |
| Contrast Ratio | >1400:1 |
| Brightness | 400+ nits Typical, High Brightness option up to 750+ nits |
| Touch Screen | Ruggedized, Analog Resistive |
| NVG | Optional NVG Compatibility |
| Overall Unit | |
|---|---|
| Dimensions (Typical) | 11.3" x 8.5" x 1.6" |
| Weight | 6 +-lbs |
| Power Input | 18 to 36VDC or 110/220VAC 44 to 440Hz Input |
| Power Consumption | 25W Typical |
| I/O | RGB/DVI, RS-170, RS232/USB (For Touch Screen or Bezel Buttons) |
| Connectors | MIL Circular, D Sub or Specify |
| Enclosure | Aluminum, Enclosed (No Openings) |
| User Controls | On/Off, OSD, Brightness, Bezel Buttons, Day/Night (for NVIS) |
| Environmental | |
|---|---|
(Designed to meet, but is not limited to, the following selected specifications) |
|
| Operating Temp | -10°C to +55°C (-40°C optional) |
| Storage Temp | -40°C to +71°C |
| Shock | Crash Safety, Bench Handling, MIL-STD-810G, Method 516.6 |
| Vibration | Sine on Random, MIL-810E, Method 514.6, Proc 1, Cat 7 |
| EMI/EMC | Full suite of MIL-STD-461 (Performed on AT version) |
| Altitude | 40k ft Operational/Non-Operational |
| Salt Fog, Sand/Dust | MIL-STD-810F, Method 510.5, Proc I & II (IP66) |
| Humidity | 100% Condensing, Op and Non Op per MIL-STD-810G, Method 507.5 |
