15 Inch Rugged Workstation RWS15
15” Rugged Workstation with Brilliant XGA Display
| Main Features |
|---|
| ▸ Small Mechanical Footprint |
| ▸ Fully Rugged Mechanical Packaging |
| ▸ 11th Gen Intel i7 processor |
| ▸ 1x to 5x Military Connectors with Customized Pin Out |
| ▸ Sunlight Readable LCD with LED Backlight |
| ▸ Fully Enclosed Unit (No Fans, Conduction Cooled) |
| ▸ Commercial Connections Accessible via Access Panel |
| ▸ Removable/Replaceable Battery Pack |
| ▸ Optional Backlit Secure Green Keyboard |
| Applications |
|---|
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
| ▸ Industrial & Manufacturing |
Login to Download Datasheet
Overview

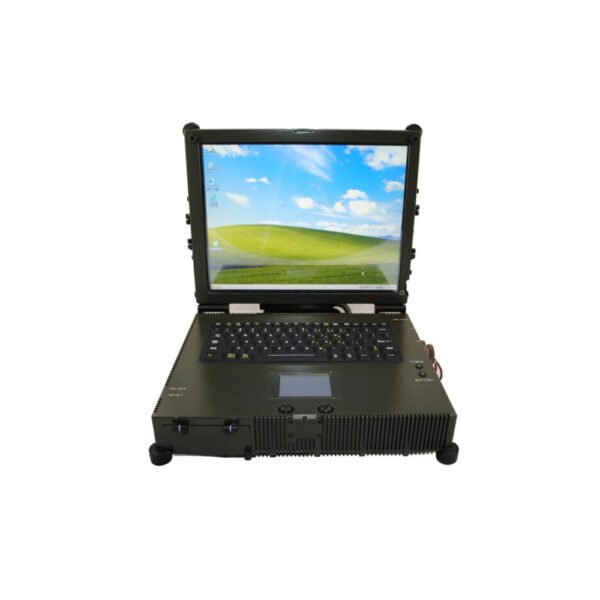

ArgonFDS’ Rugged Workstation RWS15 comes with a brilliant 15” XGA display. It provides an affordable fully featured solution for your deployable workstation applications, aircraft maintenance support, mobile command & control or any other rugged computing application where you need a powerful computing platform and configuration flexibility.
ArgonFDS will fully customize the product to your exact specifications. The RWS15 comes configured for a wide variety of applications.
Specifications
| Display | |
|---|---|
| LCD | 15” Diagonal, TFT 8 Bit Color, 1024x768 (XGA) |
| Brightness | 0 to 100% Dimming, Standard 500+ nits |
| Options | Analog Resistive, NVG Compatibility |
| Overall Unit | |
|---|---|
| Dimensions (Closed) | 13.6”W x 10.7”D x 3.9”H |
| Weight | 18+- lbs Typical |
| Power Input | 9 to 36VDC |
| Battery | LiO with Run Time of 3-4 Hours |
| Keyboard | 81-key QWERTY, sealed, silicone rubber over buttons or Specify Backlit keys, NVIS Secure Green, NRb 1.37e-10 @ 0.1fL |
| Chassis | Conduction Cooled, Fully Enclosed, Aluminum Chassis, Carrying Handle |
| Pointing Device | Touch Glide Pad |
| Other | See Technical Specification for Full Details |
| Computer | |
|---|---|
| Processor/RAM | Intel® Gen 11 i7-1185G7E, 4 Cores, 8 Threads with Iris® Xe Graphics, 4-8GB RAM |
| HD Storage | 128GB SS SATA |
| OS | Windows 10 Pro or Specify |
| I/O | 2x Ethernet, 4x RS-232, 4x USB 2.0 or 3.0, VGA Repeater Output |
| Sound | Optional 2x Push to Talk (PTT), 1x Audio Output |
| Media | Option, Inquire |
| Expansion Options | Customer Specified PCIe Card |
| Other | Customizations and Adaptations Available on Request |
| Environmental | |
|---|---|
| (Designed to meet, but is not limited to, the following selected specifications) | |
| Operating Temp | -40°C to +60°C |
| Storage Temp | -40°C to +71°C |
| Shock | MIL-STD-810, Method 516.4, 40g |
| Vibration | MIL-STD-810, Method 514.4, Proc 1 |
| EMI/EMC | MIL-STD-461E, IEC61000-4 |
| Altitude | MIL-STD-810, Method 500.3, Proc II, 40kft, Operational |
| Humidity, Salt Fog, Sand/Dust | Unit is 100% Enclosed, Resistant to Salt Fog, Fungus |
| Humidity | MIL-STD-810, Method 507.3, Proc III, Aggravated |
