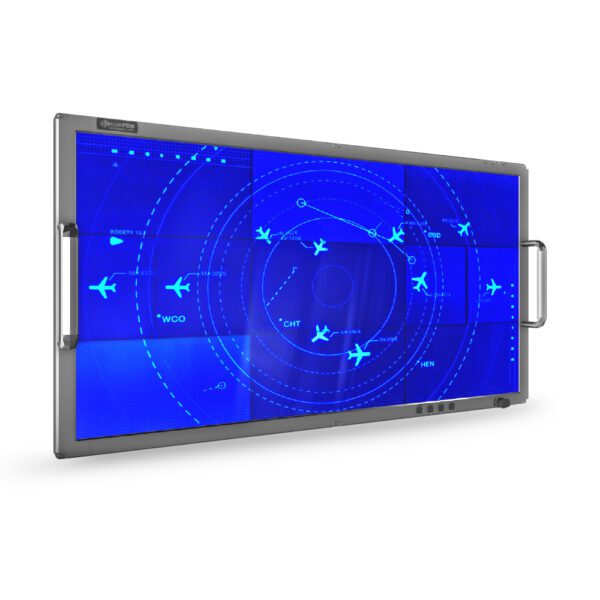

27 Inch Rugged Display ARD27
27”, QHD or 4K Resolution, Rugged Display for C5ISR Platforms
| Main Features |
|---|
| ▸ Low Power Consumption – 75W at 300 Nits (Typical) |
| ▸ LED Backlighting System |
| ▸ Two Resolutions: |
| ▸ Quad HD – 2560 x 1440 |
| ▸ 4k – 3840 x 2160 |
| ▸ Flexible Input configurations – Analog RGB/DVI/Video/Other |
| ▸ Low Weight (<22lbs) |
| ▸ Fully Enclosed Unit; No Holes or Fans |
| ▸ Qualified for airborne console applications |
| Applications |
|---|
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
Login to Download Datasheet
Overview
ArgonFDS offers a 27” QHD or 4K resolution rugged display that is designed for Command & Control applications where a large viewable surface area is needed. The ARD27’s extremely small bezel size, flexible mounting configurations, configurable I/O, and universal AC/DC power supply make it a valuable solution for many mission critical applications.
The ARD27 display is suitable for airborne applications, combat & tactical vehicles, mobile shelters, and close in naval spaces. ArgonFDS offers the customer a variety of standard options and is ready to customize to ensure that the product meets your exacting requirements.
Moreover, ArgonFDS prides itself on working collaboratively with customers to precisely achieve their desired solution. Our company has a proven track record of providing high- quality, reliable, and long-lasting products, earning us a trusted reputation in aerospace & defense.
Specifications
| Optical | |
|---|---|
| Viewable Area | 5.10” x 4.19” x 1.50” |
| Display Type | ~2.0 lbs |
| Resolution | 9 to 36VDC External Power |
| Brightness | 7W to 10W Typical, Depending on Usage Profile |
| Touch Screen | On/Off Switch or Select as Needed |
| Overall Unit | |
|---|---|
| Dimensions (Rack Mt) | 25.2” x 15.05” x 2.6” |
| Weight | +-18 lbs |
| Power Input | 18-36VDC or 110/220VAC 44-440Hz Input |
| Power Consumption | 75W Typical |
| Video Inputs | RGB – DVI – HDMI – HD-SDI – S-Video – Composite (Configurable) |
| Com Ports | RS232/USB (For Optional Touch Screen) |
| Connectors | MIL Circular, D Sub or Specify |
| Enclosure | Aluminum, Enclosed |
| User Controls | On/Off, OSD, Brightness, Bezel Buttons (Option) |
| Environmental | |
|---|---|
| (Designed to meet, but is not limited to, the following selected specifications) | |
| Operating Temp | -10°C to +55°C |
| Storage Temp | -40°C to +71°C |
| Shock | Functional: 15g, 11msec, MIL-STD-810F, method 516.5, procedure I |
| Vibration | MIL-STD 810G, Method 514, Function and Endurance |
| EMI/EMC | MIL-STD-461 |
| Altitude/Explosive Atmosphere | 40kft Operating, MIL-STD-810, Method 511/50kft Non-Operating |
| Salt Fog, Sand/Dust | Resistant to Salt Fog, Unit is 100% Enclosed |
| Humidity | Operating –5% to 95% @ 25°C, Non-Condensing, MIL-STD-810 |
