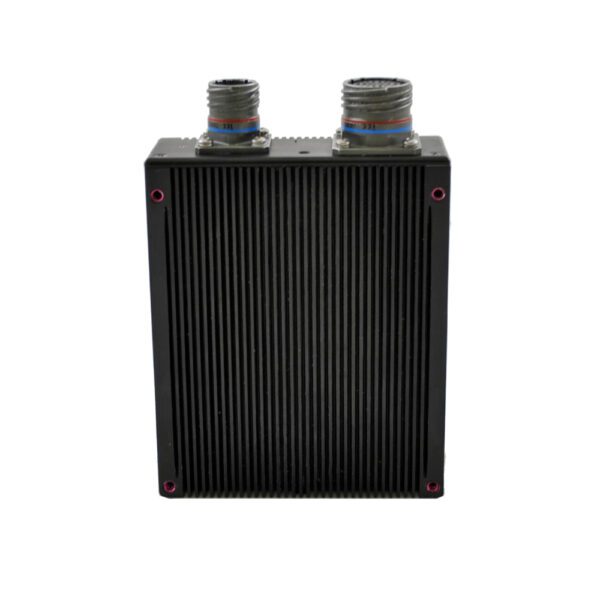

Rugged Computing Brick ACB100

Portable Rugged Computing Solution

Main Features
▸ Intel N6415 Processor or better
▸ Extremely small mechanical outline + fully enclosed
▸ (5.10” x 4.19” x 1.50”)
▸ Custom Mounting
▸ Low weight (2.0 lbs)
▸ Fully customizable I/O
▸ Custom connector types and locations per application requirements
▸ Built-in real-time frame grabber to capture live video (Option)

Applications
▸ Unmanned / Autonomous Vehicles
▸ Fixed & Rotary Wing Aircraft
▸ Naval & Maritime Vessels
▸ Military Ground Vehicles
▸ Transportation
▸ Oil & Gas
▸ Operator Wearable

Login to Download Datasheet

SKU: ACB100 Category:

Get a Quote

Name(Required)
Email(Required)

Overview

ArgonFDS offers a rugged computing “brick” that is designed for applications where high performance, yet compact computing, is required. The ACB100 is ideal for fixed mount, wearable and unmanned vehicle use. The ACB100 provides a robust computing environment that can support a wide range of system interfaces. ArgonFDS provides a variety of Hand Held displays to complement this unit or it can be connected to any other display monitor.



The ACB100 is light and compact, weighing just 2.0 lbs, and is a versatile solution for applications where size, weight, and power are of critical importance.



The ACB100 is a fully functional computer with an Intel- based processor and with a wide range of customizable I/O, supporting nearly any x86 OS.



The unit is fully enclosed to prevent ingress of sand, dust, moisture and other particles, there are no fans required for cooling. The unit is convection cooled.

Specifications

Overall Unit
Dimensions5.10” x 4.19” x 1.50”
Weight~2.0 lbs
Power Input9 to 36VDC
Power Consumption7W to 10W typical, depending on usage profile
User ControlsOn/Off switch or specify
ChassisMilled aluminum, fully enclosed
ConnectorsUser selectable from a range of MIL circular or specify
Computer
ProcessorIntel® Pentium N6415 or better
RAM4 GB DDR3 or specify
Storage128GB solid state HD or specify
OSWindows 10 or specify
I/OUSB, RS232, GigE, VGA out, specify
WirelessWiFi 802.11x with flush mount antenna (option)
GPSCommercial - specify antenna or comes with sealed SMA connector (option)
OtherVideo frame grabber or other I/O upon request (option)
Environmental
(Designed to meet, but is not limited to, the following selected specifications. See specifications for all details.)
Operating Temp-10oC to +55oC (-40oC Option)
Storage Temp-40oC to +70oC
Shock40g, 11msec
Vibration2.2grms random
EMI/EMCDesigned to MIL-STD-461E
Altitude40k ft operating/non-operating
Salt Fog, Sand/DustUnit is 100% enclosed, resistant to salt fog, fungus
HumidityOperating & storage – 95% @25oC, non-condensing
