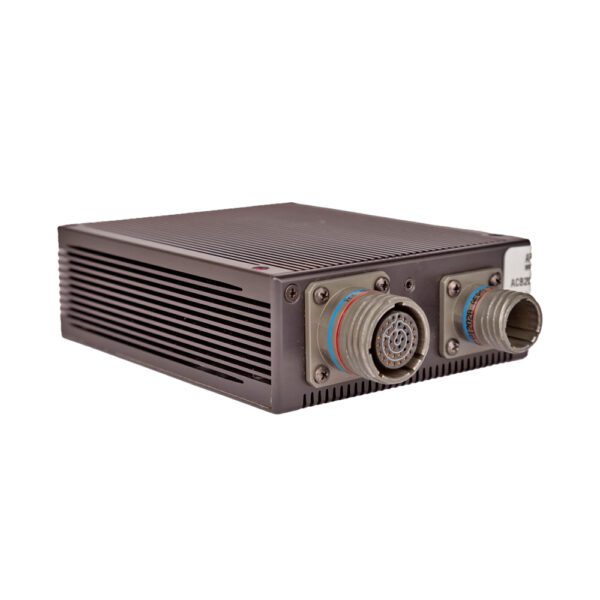

Rugged Computing Brick ACB200
Portable Rugged Computing Solution
| Main Features |
|---|
| ▸ Intel i7 (current gen or specify) |
| ▸ Extremely small mechanical outline, fully enclosed - (6.2” x 4.5” x 1.6”) |
| ▸ Custom Mounting Available |
| ▸ Low weight (~2.5 lbs, depending on configuration) |
| ▸ Fully customizable I/O |
| ▸ Custom connector types and locations per application requirements |
| ▸ Built-in real-time frame grabber to capture live video (Option) |
| Applications |
|---|
| ▸ Unmanned / Autonomous Vehicles |
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
Login to Download Datasheet
Overview
ArgonFDS offers a high-performance rugged computing “brick” that is designed for applications where compact computing is required. The ACB200 is ideal for fixed mount, wearable and unmanned vehicle use. The ACB200 provides a robust computing environment that can support a wide range of system interfaces. ArgonFDS provides a variety of handheld displays to complement this unit or it can be connected to other display monitors. The ACB200 is light and compact, weighing approximately 2.5 lbs, and is a versatile solution for applications where size, weight, and power are of critical importance.
The ACB200 is a fully functional computer with an Intel i7® processor, and a wide range of I/O, supporting a variety of operating systems. Typically, we can install the most recent i7 generation, or the customer can specify for the application.
The unit is fully enclosed to prevent ingress of sand, dust, moisture and other particles, there are no fans required for cooling. The unit is convection cooled.
Specifications
| Overall Unit | |
|---|---|
| Dimensions | 6.2” x 4.5” x 1.6” (standard) |
| Weight | ~2.5 lbs |
| Power Input | 9 to 36VDC |
| Power Consumption | 11W to 14W typical, depending on usage profile |
| User Controls | On/Off switch or specify |
| Chassis | Milled aluminum, fully enclosed |
| Connectors | User selectable from a range of mil circular or specify |
| Computer | |
|---|---|
| Processor | Intel® Gen 12 or better |
| RAM | 8 GB DDR3 standard or specify |
| Storage | 128GB solid state HD or specify |
| OS | Windows 10, or specify |
| I/O | 2x USB 2.0 or 3.0, RS232, RS422, 2x GigE, VGA out, specify others |
| Wireless | WiFi 802.11x with flush mount antenna (option) |
| GPS | Commercial - specify antenna or comes with sealed SMA connector (option) |
| Other | Video frame grabber or other I/O upon request (option) |
| Environmental | |
|---|---|
| (Designed to meet, but is not limited to, the following selected specifications. See specifications for all details.) | |
| Operating Temp | -10°C to +55°C (-40°C option) |
| Storage Temp | -40°C to +70°C |
| Shock | 40g, 11msec or test to application |
| Vibration | 2.2grms random or test to application |
| EMI/EMC | Designed to MIL-STD-461E, test to application |
| Altitude | 40k ft operating/non-operating |
| Salt Fog, Sand/Dust | Unit is 100% enclosed, resistant to salt fog, fungus |
| Humidity | Operating & storage – 95% @25°C, non-condensing |
