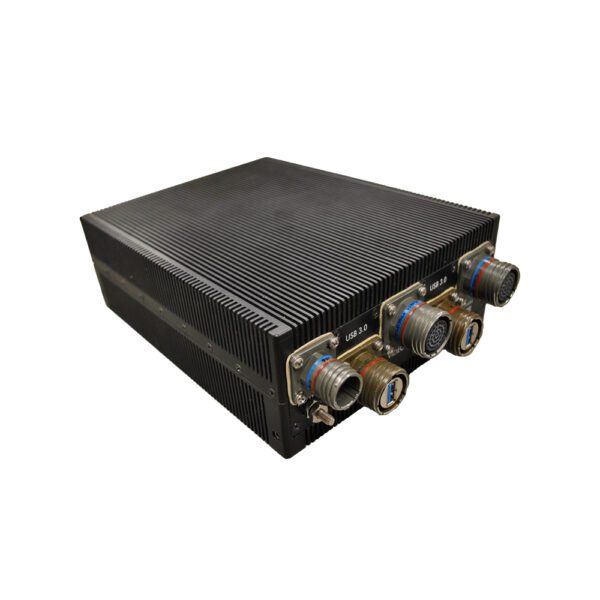

Rugged Computing Brick ACB300
Portable Rugged Computing Solution
| Main Features |
|---|
| ▸ Extremely small mechanical outline, fully enclosed - (8.6” x 6.8” x 2.9”) |
| ▸ Up to an Intel i7 (currently 11th gen or higher) |
| ▸ Integrated GPU or discrete GPU (Option) |
| ▸ Custom Mounting Available |
| ▸ Low weight (~7.4 lbs, depending on configuration) |
| ▸ Fully customizable I/O |
| ▸ Custom connector types and locations per application requirements |
| ▸ Built-in real-time frame grabber to capture live video (Option) |
| ▸ Passive air cooling by natural convection (no fans or conduction cooling) |
| ▸ ITAR Free |
| Applications |
|---|
| ▸ Unmanned / Autonomous Vehicles |
| ▸ Fixed & Rotary Wing Aircraft |
| ▸ Naval & Maritime Vessels |
| ▸ Military Ground Vehicles |
| ▸ Transportation |
| ▸ Oil & Gas |
| ▸ Operator Wearable Technology |
Login to Download Datasheet
Overview
ArgonFDS offers a high-performance rugged computing “brick” that is designed for applications where compact computing is required. The ACB300 provides a robust computing environment and a PCIe card slot provides more extended interface capabilities or a dedicated graphic board. ArgonFDS offers a variety of Rugged Displays to complement this unit, or it can be connected to other display monitors.
The ACB300 is light and compact, weighing approximately 7.4 lbs, and is a versatile solution for applications where size, weight, and power are of critical importance.
The ACB300 is a fully functional computer with an Intel i7® processor, a wide range of I/O, and supports a variety of operating systems. Typically, we can install the most recent generation, or the customer can specify what is required for the application. The unit is fully enclosed to prevent the ingress of sand, dust, and moisture.
Specifications
| Overall Unit & Computer Specifications | |
|---|---|
| Dimensions | 8.6” x 6.8” x 2.9” (Standard) |
| Weight | ~7.4 lbs |
| Power Input | 9 to 36VDC External Power (Optional hold up for momentary power interruption) |
| Power Consumption | 25W to 75W Typical, Depending on Usage Profile and Graphical Board |
| User Controls | None selected |
| Chassis | Aluminum, Fully Enclosed |
| Connectors | Mil Circular |
| Processor | Intel® Gen 11 i7-1185G7E, 4 Cores, 8 Threads |
| Graphics | NVIDIA T1000 with 8 GB dedicated RAM |
| RAM | 64 GB DDR4 Standard |
| Storage | 512GB Solid State Drive, Removable |
| OS | Windows 10,11, Linux or Specify |
| I/O | 2x GbE, 4x USB 2.0, RS232, 8x LVTTL GPIO |
| Video Outputs | 2x independent DVI/HDMI up to 1920x1200p60 |
| Wireless | Not included (WiFi 802.11x with Antenna is available) |
| Battery | Removeable CMOS battery |
| GPS | Not included (Antenna or Sealed SMA Connector is available) |
| Other | Video Frame Grabber or Other I/O Upon Request (Option) |
| Environmental | |
|---|---|
| Operating Temp | -10°C to +55°C (-40°C Option), +70°C Short Time |
| Storage Temp | -40°C to +70°C |
| Shock | 40g, 11msec or Test to Application |
| Vibration | 2.2grms random or Test to Application |
| EMI/EMC | Designed to MIL-STD-461E, Test to Application |
| Electrical Input | MIL-STD-704F |
| Altitude | 40k ft Operating/Non-Operating |
| Rapid Decompression | 45k ft |
| Salt Fog, Sand/Dust | Unit is 100% Enclosed, Resistant to Salt Fog, Fungus |
| Humidity | Operating & Storage – 95%@25°C, Non-condensing |
| Waterproofness | RTCA-DO-160F Section 10 CatW |
